Air Compressor Flywheel

SolidWorks Design

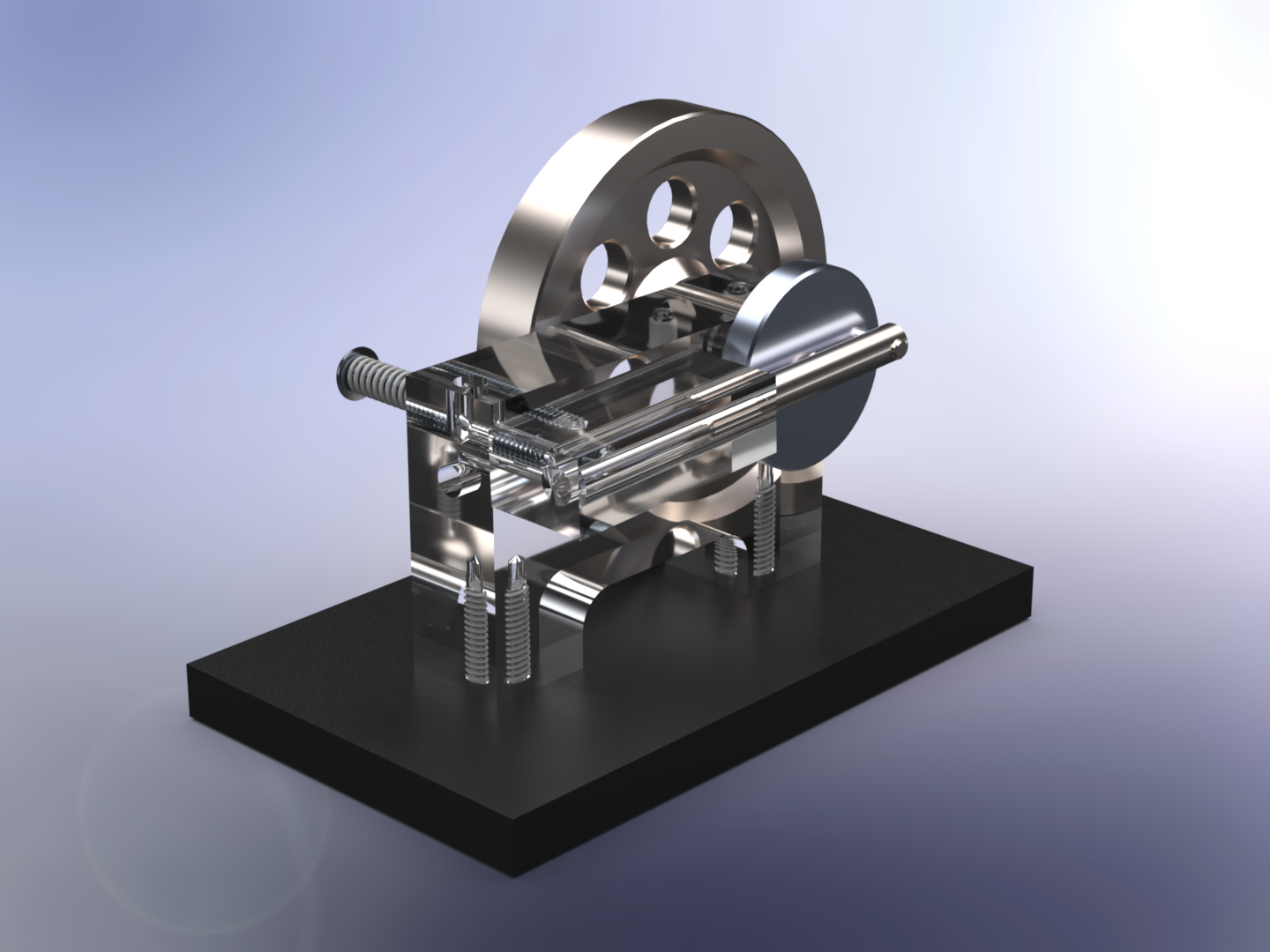

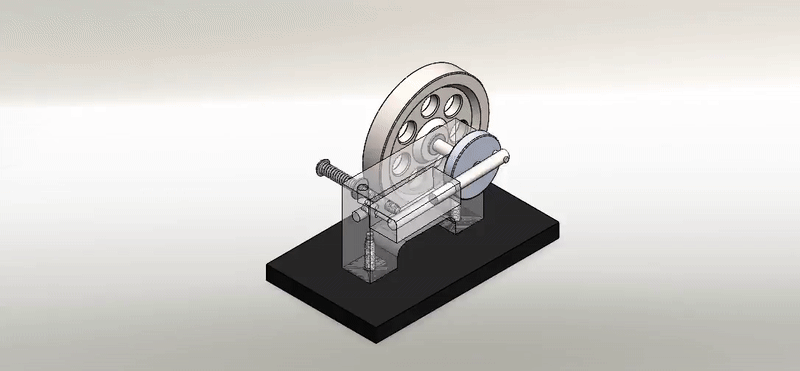

Created a full 3D model of the flywheel mechanism in SolidWorks, ensuring precise dimensions and functionality of the crankshaft system.

SolidWorks Design
SolidWorks Design

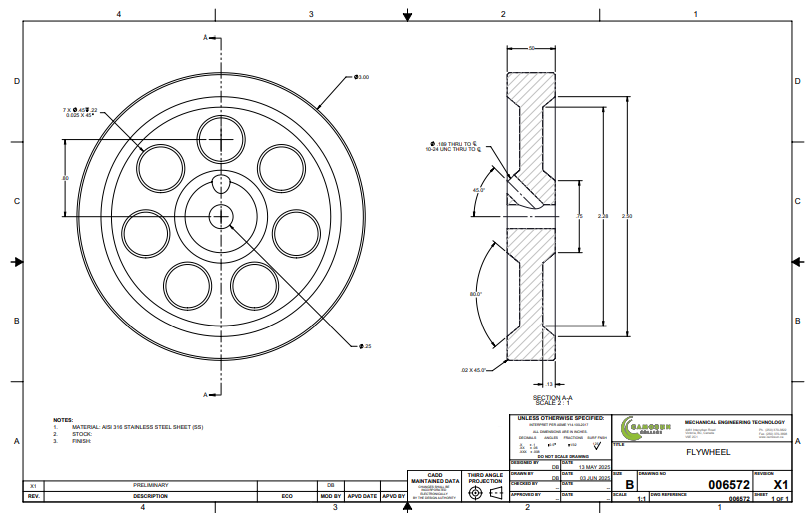

SolidWorks Drawing Package

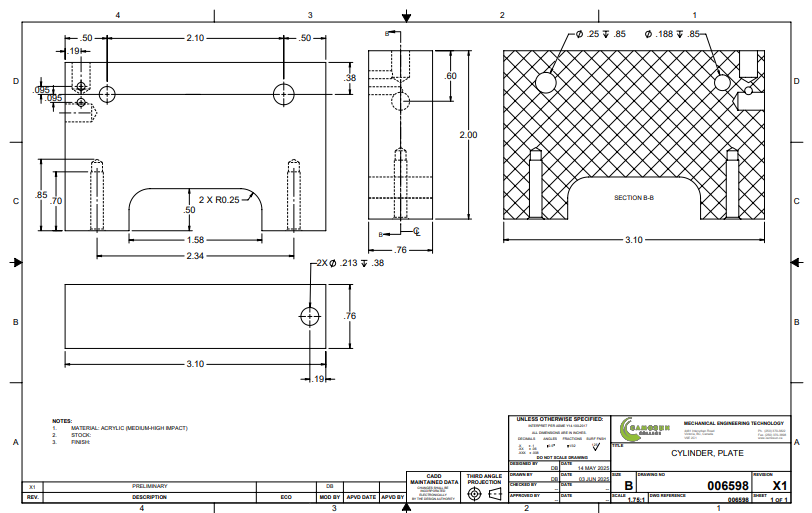

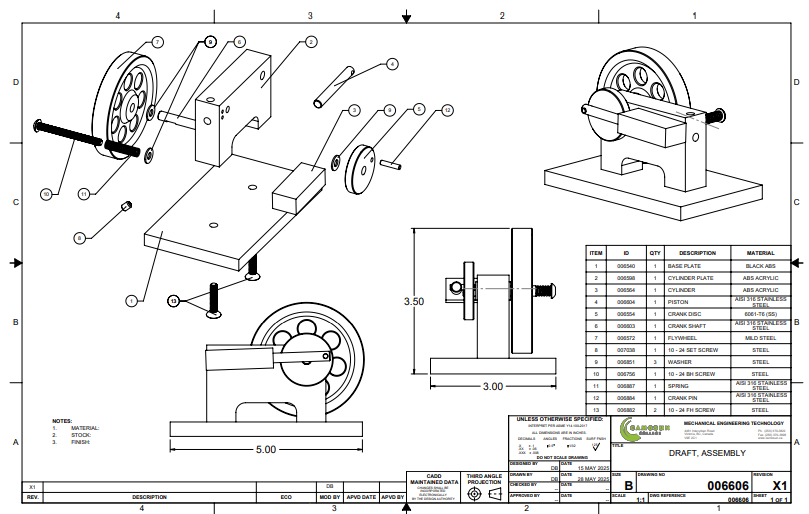

Produced detailed technical drawings alongside the manufacturing process, translating design into clear, professional documentation.

SolidWorks Drawing Package
SolidWorks Drawing Package
SolidWorks Drawing Package

RPM Test

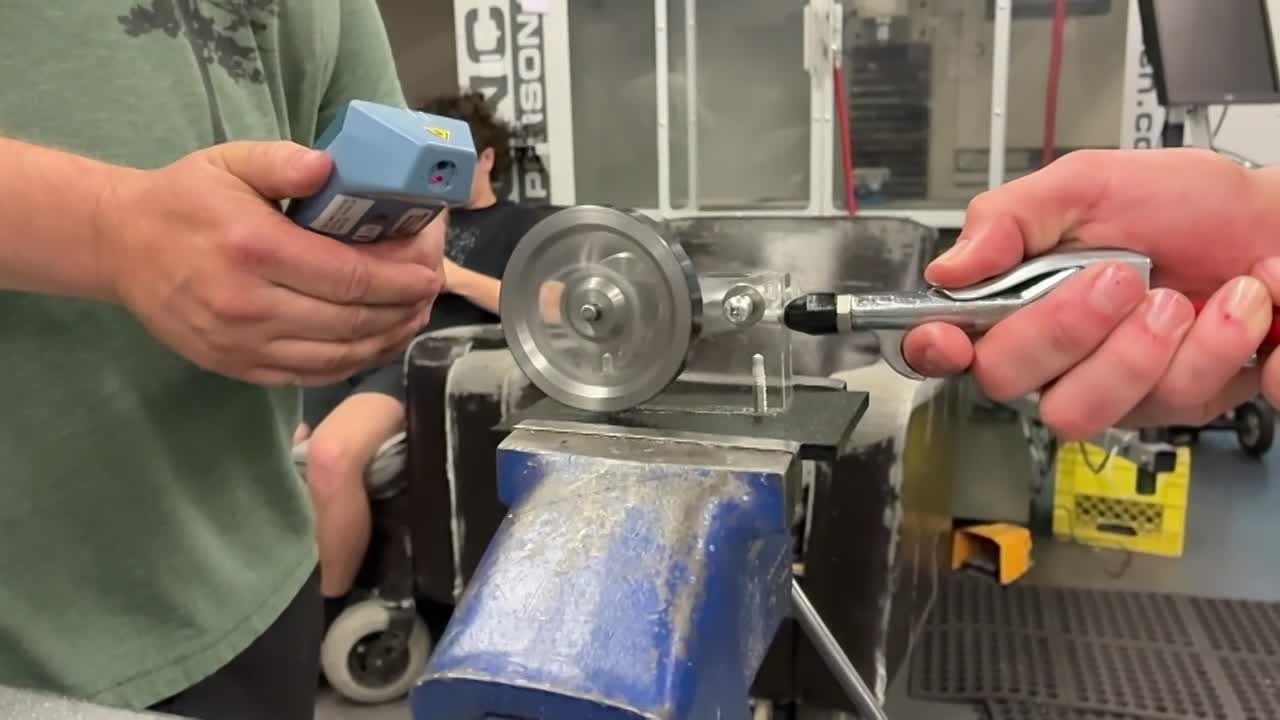

Machined every component in the shop, assembling and testing the mechanism to achieve top-class performance at nearly 6000 RPM.

RPM Test
